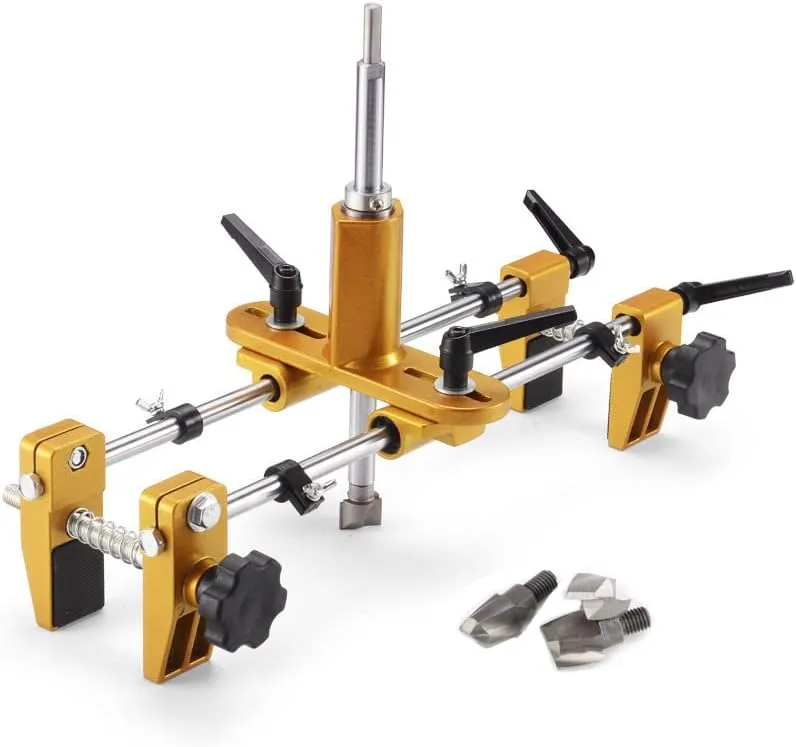

- Mortising jig kit widely used to open new/eccentric lock hole, change password/fingerprint lock, modify door lock
- Fit for wooden doors 25-100mm (0.98-3.93inch) thick; Max. opening groove depth of 130mm (5.1inch); Max. opening groove length of 260mm (10.2inch)
- Door lock installation kit for more efficient and more precise mortising in only ten minutes
- With 3 tungsten steel drill bits of sizes 18/22/24 mm (0.79/0.87/0.95 inch)
- Upgraded version for more precise mortising of straight vertical slots; Enlarged anti-skid pads for tighter grip; Prolonged sliding slot for freer screw adjustment
★★ Specifications Materials: Tungsten, steel Maximum Distance to lock hole center: 7cm (2.8") Maximum Door Thickness: 2.5-10cm (1.0-4.0") Maximum Slotted Depth: 13cm (5.1") Maximum Lock Length: 26cm (10.2") Drill Cutter Sizes: 18/22/24 mm (0.79/0.87/0.95 inch) Package Dimensions (L x W x H): 51 x 23 x 12cm (20" x 9" x 5") Package Weight: 5000g (11 lbs) ★★ Package Content 1 x Door lock mortise jig 1 x Drill chuck 2 x 7-shaped adjustment screw 2 x Ring screw (with gasket & nut) 3 x Tungsten steel drill bit 2 x Spanner 1 x Ruler 1 x Wood chisel 1 x Locator 1 x Portable case
